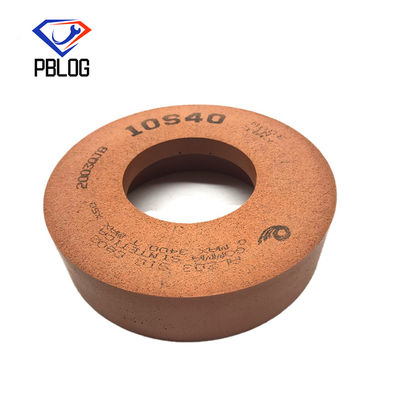

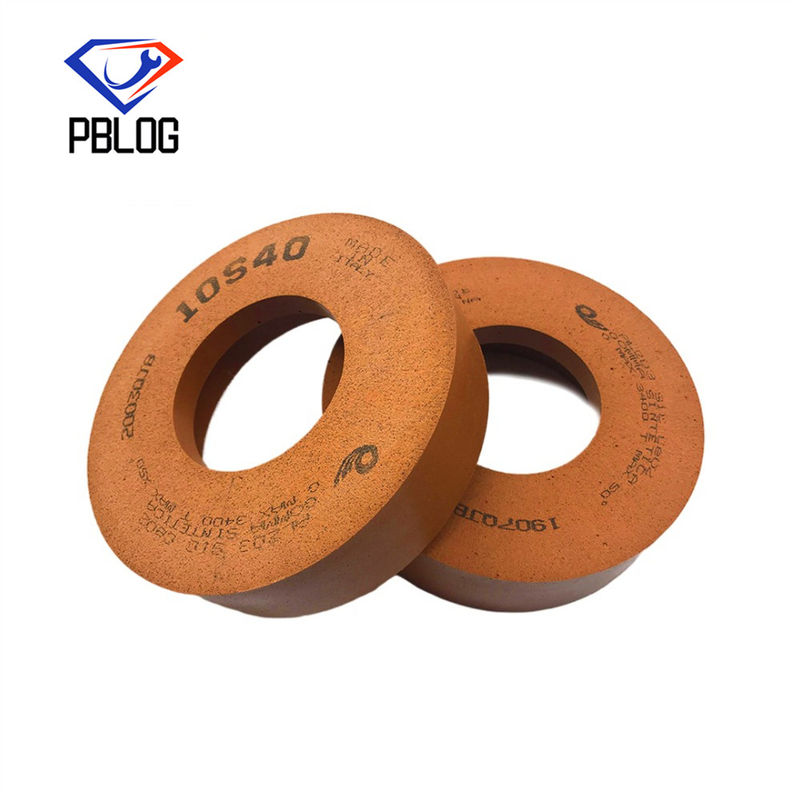

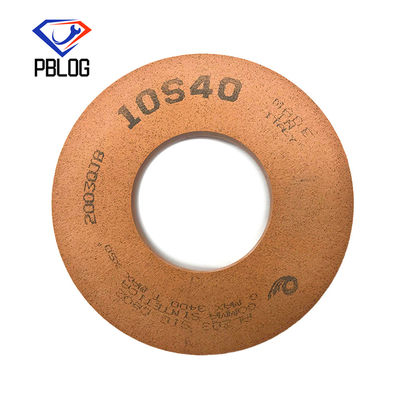

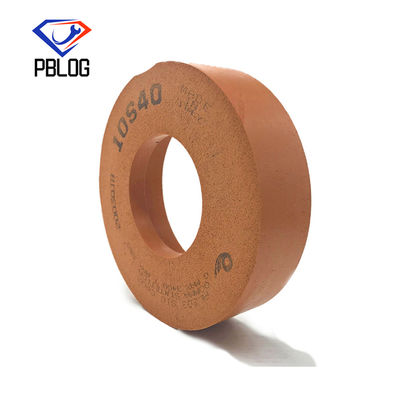

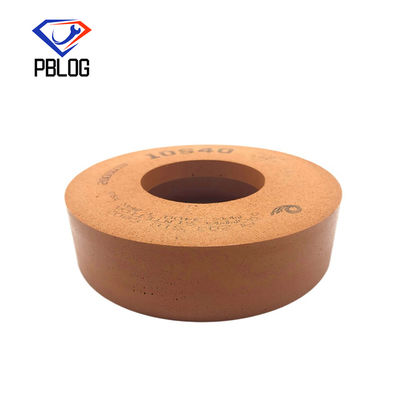

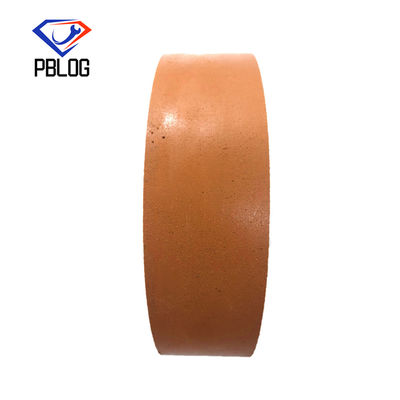

10S40 Rubber Polishing Abrasive Wheel Grit 150 / 130mm Glass Processing Tools
Product Details:
Place of Origin: | Guangdong |
Brand Name: | PBLOG |
Model Number: | BFPWRMB-10S |
Payment & Shipping Terms:
Minimum Order Quantity: | 10pcs |
---|---|
Price: | USD 4.5-5.8/pcs |
Packaging Details: | 1pcs/box |
Delivery Time: | Delivery within 15 days of last payment date |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1000 pcs per week |
Detail Information |
|||
Name: | 10S40 Polishing Wheel | Material: | Rubber |
---|---|---|---|
Size1: | 150*70*30/40 | Size2: | 130*60*35 |
Grits: | #40, #60, #80 | Use: | Straight Edge Machine |
Application: | Mirror, Glass Etc. Edge Processing Polishing | Machine: | Double-edge And Straight-edge Machines |
High Light: | 10S40 Polishing Abrasive Wheel,Polishing Abrasive Wheel 130mm,Rubber Polishing Wheel Grit |
Product Description
10S40 Polishing Wheel 150/130mm For The Straight Edge Machine Glass Processing Tools
10S series polishing wheel
Size: 150x40x70 130x35x60
Application: for bottom edge polishing on straight edge machines, bilateral machines
Performance description: 10S polishing series - for polishing the bottom edge and 45 degree chamfering of glass on straight edge machines. It can also be used for the fine polishing of bevelled edges of glass and can replace the imported 10S series and BK series.
When this product is used for straight bevelling machines, the front process must be combined with diamond wheels and resin wheels, and the back process must be combined with wool wheels.
Note: Coolant must be used for this product. Please use at high line speeds of 30m/s.
Characteristics: This product is available in 40/60/80/120 mesh, the different mesh sizes are different in terms of the coarseness and precision of the grinding wheel grit, the smaller the mesh the larger the grit size, the sharper the grinding wheel, and the corresponding brightness is not as bright as the larger mesh. The larger the relative mesh, the smaller the grit size, the shinier the grinding wheel, the relative sharpness is not as good as the former.
10S40 Polishing Wheel 150/130mm For The Straight Edge Machine Glass Processing Tools
Name | 10S polishing wheel | |
Size | 150*70*30/40 | 130*60*35 |
Grits | #40, #60, #80 | |
Machine | Double-edge and straight-edge machines |
10S polishing wheel, also known as a water pine wheel, is made of rubber and abrasive material and has a certain elasticity, with a fine grinding force, which can trim the slight texture and at the same time achieve a certain polishing effect; it is often used in a polishing light process after finishing the grinding wheel.
The 10S is suitable for use on glass bilateral grinding machines for bottom edge polishing and can be used at running speeds of up to 8 m/min for glass processing with a polish of over 7 Gs if a diamond resin wheel is used in the front station, and is an ideal alternative to the 10S series or the BK series if you wish to maintain polishability while increasing running speed. Operating speed up to 2800 rpm.
polishing effect
