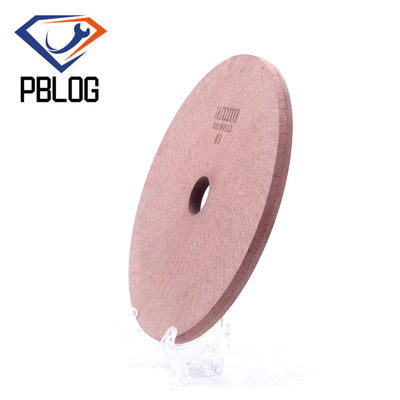

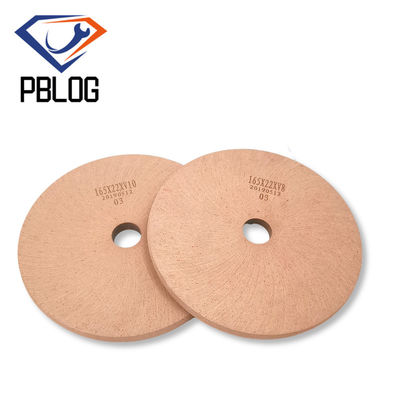

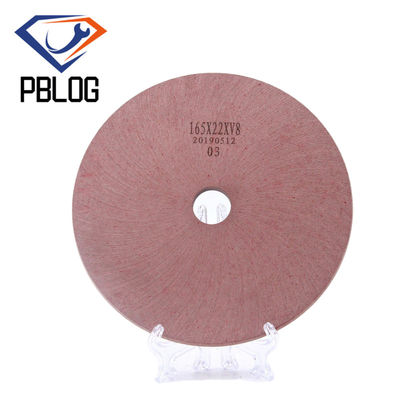

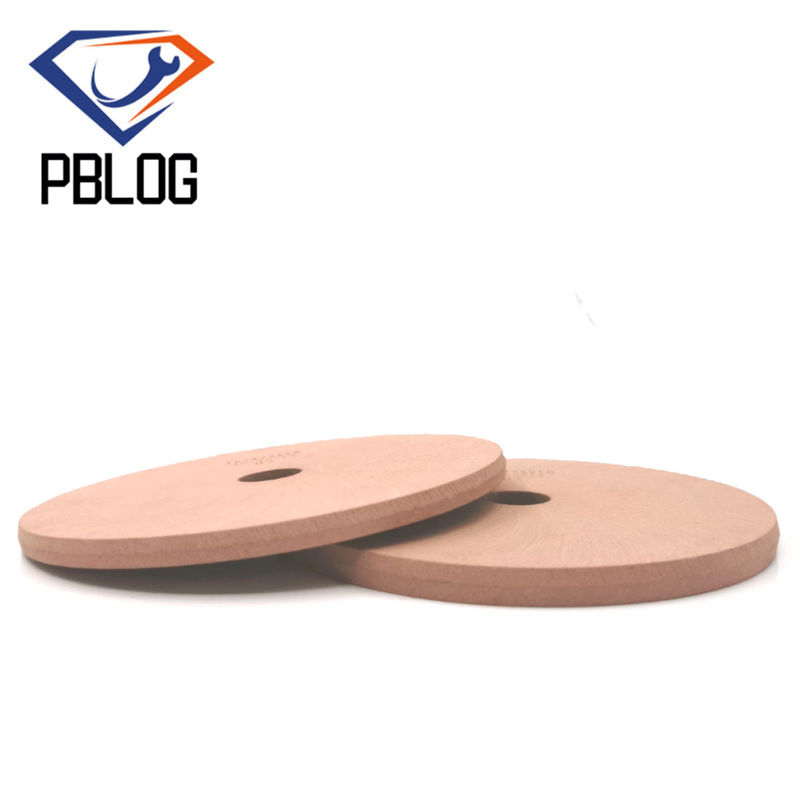

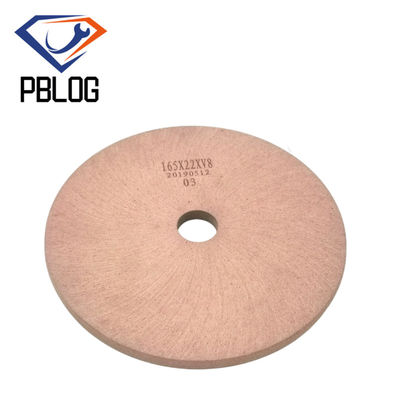

BD Engraving Diamond Glass Polishing Wheel High Brightness Without Scratching
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | PBLOG |
| Model Number: | BFPWG-BDV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | USD 3-4.2/pcs |
| Packaging Details: | 10pcs/box |
| Delivery Time: | Delivery within 15 days of last payment date |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 pcs per week |
|
Detail Information |
|||
| Name: | BD Engraving Polishing Wheel | Size: | 150/160/200*22/90*3/6/8/10/12 |
|---|---|---|---|
| Inner Hole: | 70mm | Material: | Diamond + Metal Powder |
| Adhesive: | Resin | Shape: | Flat |
| Application: | Deburring | Usage: | Glass Grinding And Polishing Diamond Grinding Wheel Glass |
| High Light: | BD Glass Polishing Wheel,Engraving Glass Polishing Wheel,Diamond Polishing Wheel High Brightness |
||
Product Description
BD Engraving Polishing Wheel High Brightness Without Scratching Glass Slate Stone Polishing Engraving
BD polishing wheel
| Name | BD polishing wheel - V |
| Size | 150/160/200*22/90*3/6/8/10/12 |
| Material | Diamond + Metal Powder |
| Application | Deburring |
| Usage | Glass grinding and polishing diamond grinding wheel glass |
Mud wheel is also called BD polishing wheel, parallel BD polishing wheel is mainly used for polishing on shaped machine, the effect is excellent, cup-shaped BD polishing wheel is mainly used for polishing on straight edge machine, mud wheel is especially used for fine processing of furniture glass, decorative glass and craft glass. BD "U" type and "V" type engraving wheels can be used in machine engraving machines.
BD Engraving Wheel, also named BD engraving buffing wheel, is suitable for CNC glass engraving machine. Our V and U shape BD engraving wheel is in medium hardness. You will find it's perfect to use in high speed machine around 4000-10000 rpm. Different size or bore size can be customized. Send us your drawing, get you exactly what you want.
Special resin bonding agent for polishing various glass engraving and grooving, with fast polishing speed, high finish and long life. Compared with Italian and German engraving polishing wheel.
Applicable equipment: domestic and foreign computerized engraving machines various manual and semi-automatic engraving machines.
Specifications: can be customized according to customer needs.
Used in CNC engraving machines to polish the grooves, good polish tracking good light transmission, processing width 3mm to 6mm, conventional specifications using 156 degree grooving. Red formula has high life span, generally recommended compensation parameter setting of 80 microns to 120 microns per meter is appropriate (diameter compensation). Green formulation is suitable for decorative glass, silver mirror glass, art windows and doors and other glass surface processing. Pay attention to coolant use during operation.
V type engraved BD wheel for CNC machine, glass carving groove polishing, used in CNC machine, usually used in U type, V type engraved diamond wheel after the polishing of the engraved glass. Note: The specifications of the wheel can be customized according to the requirements of the guests.
BD Engraving Polishing Wheel High Brightness Without Scratching Glass Slate Stone Polishing Engraving
