Scribing Glass Tile Cutting Tool Hardness Round Knife Cutter Opener

Product Description

Glass Round Rule Knife Industrial Model Glass Tile Scribing Round Knife Glass Opener Window Opener Circular Cutter

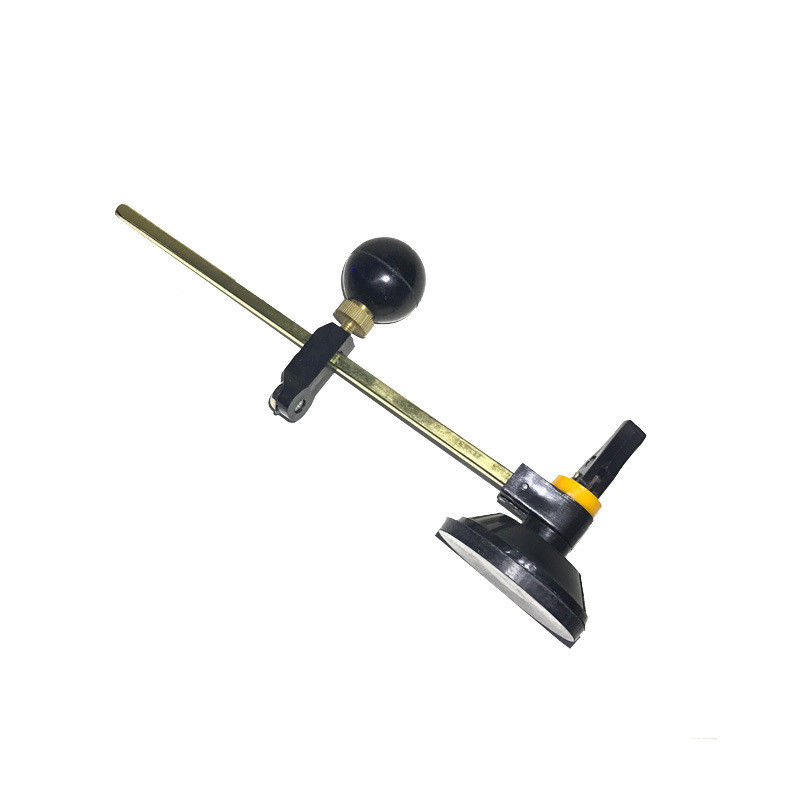

round shape cutter

Features of circular cutter.

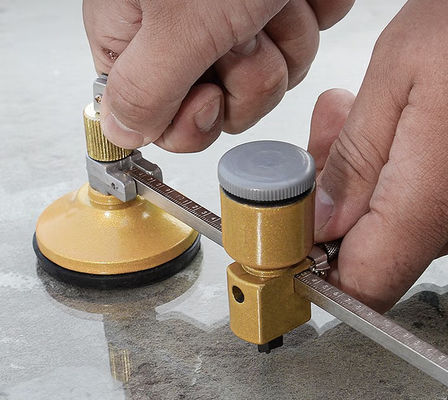

We use strong suction suction cups, which can absorb the glass well and ensure the curvature of the cutting line New grinding wheel grinding technology greatly improves the smoothness of cutting. A new automatic lock is added to the oil path, which can precisely adjust the release of lubricant and prevent the glass from being contaminated. More accurate, more economical and more environmental friendly. The shaft and drag wheel enhance stability and provide better grip for easier and more comfortable operation.

Glass knife refers to the tool used to cut glass, usually the part of the glass knife used to cut is made of diamond or alloy material which is harder than glass, this part is in the tip of the knife.
Glass cutter cutting all kinds of glass tips, glass cutter can be divided into diamond glass cutter and alloy hobble glass cutter, is suitable for cutting the thickness of 1-8 mm flat glass, is an essential glass cutting tool for the decoration and building materials industry.

Cutting Tips

• Cutting 2-3mm thick plate glass with glass cutter

Cutting 2 a 3m thick plate glass available 2mm × 12mm thin wooden ruler, first measure the size of the glass, set the cutting size on the ruler, to consider leaving a 3mm gap and 2mm knife edge. Cutting can be size of the side of the glass close to the side. Glass knife close to the other end of the straightedge, grasp the blade end straight backward rowing, can not have a light or heavy bending.

• Cutting 4-6mm thick glass with a glass cutter

Cutting 4-6mm thick glass method is roughly the same as above, but because the glass is thicker, cutting to hold accurate, hold steady, light and heavy force evenly. There is also a cutting method is to use a 4mm × 50mm straightedge, glass cutter cut close to the straightedge. When cutting, to brush some kerosene on the cutter in advance, so that the cutter is easy to wrench off after oil penetration.

• Cutting 5-6mm thick large glass with glass cutter

Cutting 5-6mm thick block of glass with 5mm × 40mm straightedge cutting the same method. But the large glass area is larger, people standing on the ground can not cut, sometimes need to stand on the glass cutting, cutting before the workbench must be padded with flannel, so that the glass is evenly pressed, after cutting hands to hold the required glass, while down the plate off, can not be careless, and cause the whole glass rupture.

• Cutting laminated glass with glass cutter

Cutting laminated glass with 5-6mm flat glass, but the cutting surface of laminated glass is uneven, cutting the knife is easy to slip, difficult to grasp, so to identify the knife, hold the tip of the knife, the force is greater than the general glass, the speed should also be faster, so that there is no bending is not straight. After cutting hands grip the glass force downward wrench, clip wire can be set off, and then use pliers to cut down the clip wire, so as not to cut the palm of the hand when handling.

• Cutting embossed glass with glass cutter

Cutting embossed glass with a glass cutter, embossed surface should be down, cutting method with the same as the laminated glass.

• Cutting frosted glass with glass knife

Cutting frosted glass with a glass knife, the gross surface should be downward, the cutting method is also the same as the flat glass.

Glass Round Rule Knife Industrial Model Glass Tile Scribing Round Knife Glass Opener Window Opener Circular Cutter
