ODM Diamond Cup Wheel Hardness Glass Ceramic Grinding Wheel Surface

ODM Diamond Cup Wheel Hardness Glass Ceramic Grinding Wheel Surface

Product Details:

Place of Origin: GUANGDONG
Brand Name: PBLOG
Model Number: CBN-resin

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD 20-50/pcs
Packaging Details: 1pc/box
Delivery Time: Delivery within 15 days of last payment date
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per week
Get Best Price Contact Now

Detail Information

Name: CBN Resin Wheel Size: 100mm, 125mm, 150mm
Color: Red Yellow Brown Green Black Support: OEM,ODM,OBM
Shape: Cup-Shaped Bond: Metal Resin Electroplated
Application: Grinding Wheel For Bench Grinder Hardness: Hard
High Light:

ODM Diamond Cup Wheel

,

Diamond Cup Wheel Hardness

,

Glass Ceramic Grinding Wheel

Product Description

12V9 Diamond Cup Wheel Ceramic Glass CBN Grinding Wheel High Precision Surface Grinding

CBN grinding wheels are generally divided into the following types.
1, CBN resin-bonded grinding wheels, sintered and shaped with resin bonding agents.
2, CBN metal bond grinding wheels, sintered with a metal bond.
3, CBN ceramic bond grinding wheels, sintered with a ceramic bond.
4, CBN electroplated grinding wheels, using electroplating to coat the abrasive layer on the substrate.

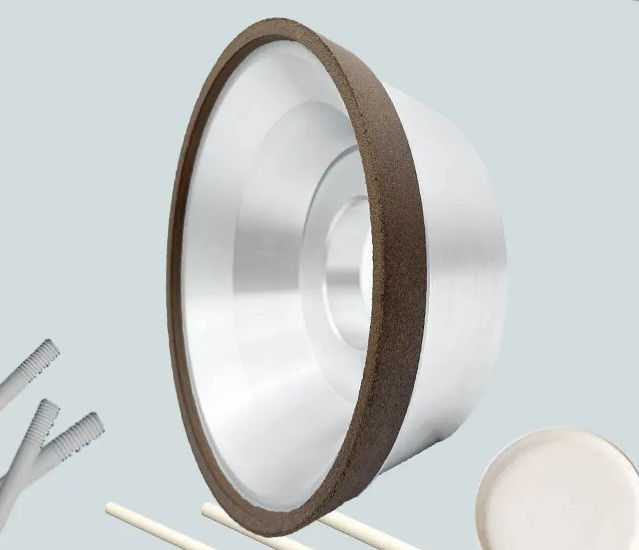

ODM Diamond Cup Wheel Hardness Glass Ceramic Grinding Wheel Surface 0





CBN has a higher hardness than ordinary abrasives. High hardness means better cutting ability and sharper; CBN has high wear resistance, which means it is harder to wear than ordinary abrasives; the ability to maintain the shape of the abrasive grain is one of the main characteristics of CBN as a high performance abrasive; CBN has high compressive strength, which means it can keep the grain intact and not break easily when used under harsh conditions; CBN has good thermal conductivity, which allows cold cutting during grinding



12V9 Diamond Cup Wheel Ceramic Glass CBN Grinding Wheel High Precision Surface Grinding

Grit size (national standard) Grinding process
70/80~120/140 Rough grinding
120/140~200/230 Semi-finish grinding
200/230~36-54 Fine grinding
36-54~05-1 Grinding and polishing

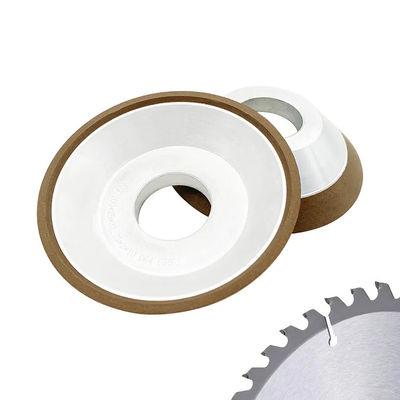

ODM Diamond Cup Wheel Hardness Glass Ceramic Grinding Wheel Surface 1

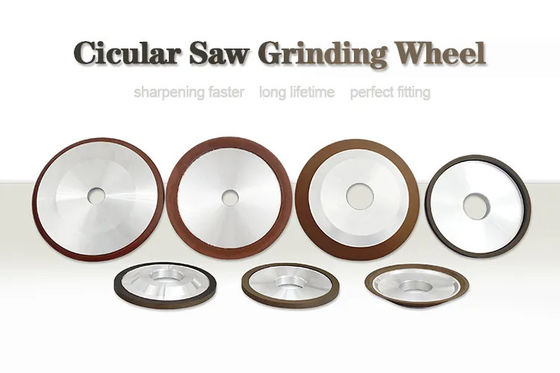

ODM Diamond Cup Wheel Hardness Glass Ceramic Grinding Wheel Surface 2



CBN grinding wheel features.

1. The hardness of CBN grinding wheel is much higher than that of ordinary abrasive grinding wheel, so it has better cutting ability and sharper compared with ordinary grinding wheel.

2. CBN grinding wheels are high temperature resistant and thermally stable, CBN can withstand high temperature of 1250-1350 degrees Celsius, which is higher than diamond's heat resistance of 800 degrees Celsius. When grinding and cutting ferrous materials, there is no sticky chip phenomenon.

3. Good thermal conductivity

4. Good grinding performance and good surface quality.

5. CBN grinding wheel High working efficiency, long dressing cycle, less dressing volume, long replacement time, and good overall economic benefits.

6. CBN grinding wheels are not suitable for grinding cemented carbide, and CBN will chemically react with alkaline aqueous solution under high grinding temperature, so it is better to use oil-based coolant than water-soluble coolant.
