OEM CBN Grinding Wheel Resin Bond Cast Iron Grinding Wheel Hardness

OEM CBN Grinding Wheel Resin Bond Cast Iron Grinding Wheel Hardness

Product Details:

Place of Origin: GUANGDONG
Brand Name: PBLOG
Model Number: CBN-resin

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: USD 16-29/pcs
Packaging Details: 1pc/box
Delivery Time: Delivery within 15 days of last payment date
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per week
Get Best Price Contact Now

Detail Information

Name: CBN Resin Wheel Size: Customization
Abrasive: Resin, CBN Hardness: As Required
Bonding Agent: Resin Application: Polish Metal And Inox
Product Name: Diamond Grinding Wheels CBN Wheels Surface Grinding Wheels Support: OEM,ODM,OBM
High Light:

OEM CBN Grinding Wheel

,

CBN Grinding Wheel Resin Bond

,

Cast Iron Grinding Wheel Hardness

Product Description

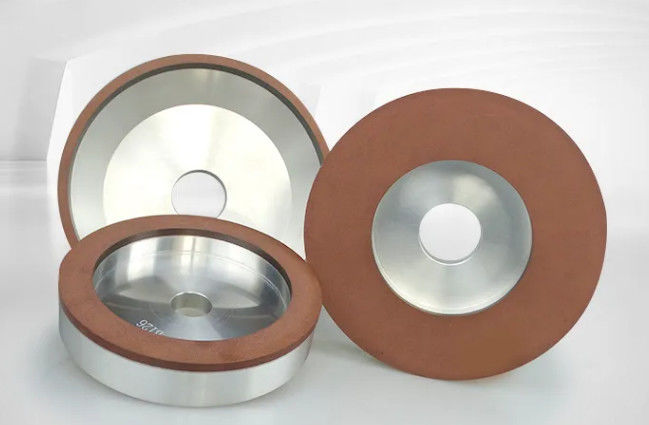

Resin Bond CBN Grinding Wheels Cast Iron Grinding Wheel Processing High And Hard Alloys

CBN grinding wheels are generally divided into the following types.
1, CBN resin-bonded grinding wheels, sintered and shaped with resin bonding agents.
2, CBN metal bond grinding wheels, sintered with a metal bond.
3, CBN ceramic bond grinding wheels, sintered with a ceramic bond.
4, CBN electroplated grinding wheels, using electroplating to coat the abrasive layer on the substrate.

OEM CBN Grinding Wheel Resin Bond Cast Iron Grinding Wheel Hardness 0



CBN has a higher hardness than ordinary abrasives. High hardness means better cutting ability and sharper; CBN has high wear resistance, which means it is harder to wear than ordinary abrasives; the ability to maintain the shape of the abrasive grain is one of the main characteristics of CBN as a high performance abrasive; CBN has high compressive strength, which means it can keep the grain intact and not break easily when used under harsh conditions; CBN has good thermal conductivity, which allows cold cutting during grinding.



CBN grinding wheel features.
1. The hardness of CBN grinding wheel is much higher than that of ordinary abrasive grinding wheel, so it has better cutting ability and sharper compared with ordinary grinding wheel.
2. CBN grinding wheels are high temperature resistant and thermally stable, CBN can withstand high temperature of 1250-1350 degrees Celsius, which is higher than diamond's heat resistance of 800 degrees Celsius. When grinding and cutting ferrous materials, there is no sticky chip phenomenon. 3.
3. Good thermal conductivity: CBN thermal conductivity can reach tens to hundreds of times of corundum grinding wheels, so it can export the grinding heat quickly and reduce the thermal deformation of the workpiece. It is very suitable for grinding materials with low thermal conductivity.
4. Good grinding performance and good surface quality. Since CBN grinding wheels can maintain the sharpness of the micro-edges of abrasive grains for a long time, it will make the machining accuracy and surface roughness value of the workpiece to be machined reach a more desirable effect, so it can increase the durability of the workpiece by 10%-30%.
5. CBN grinding wheel High working efficiency, long dressing cycle, less dressing volume, long replacement time, and good overall economic benefits.
6. CBN grinding wheels are not suitable for grinding cemented carbide, and CBN will chemically react with alkaline aqueous solution under high grinding temperature, so it is better to use oil-based coolant than water-soluble coolant.



OEM CBN Grinding Wheel Resin Bond Cast Iron Grinding Wheel Hardness 1

Resin Bond CBN Grinding Wheels Cast Iron Grinding Wheel Processing High And Hard Alloys

Grit size (national standard) Grinding process
70/80~120/140 Rough grinding
120/140~200/230 Semi-finish grinding
200/230~36-54 Fine grinding
36-54~05-1 Grinding and polishing



OEM CBN Grinding Wheel Resin Bond Cast Iron Grinding Wheel Hardness 2

Resin bond CBN grinding wheels are an excellent choice for processing high and hard alloys. They offer superior cutting performance compared to traditional abrasive wheels, and can significantly reduce the cycle time and cost of production. The wheel's industrial-grade bonding agent provides maximum strength and adhesion to the wheel's abrasive surface, allowing it to handle tougher materials with ease. The wheel's open structure also helps keep it cool, allowing for controlled and precise grinding for perfect results. The wheel's fine surface finish ensures that it does not leave any burrs or chips in the material, providing a smooth finish. With its high durability and reliable performance, resin bond CBN grinding wheels are an ideal choice for machining hard and high alloy materials.
